Dahua

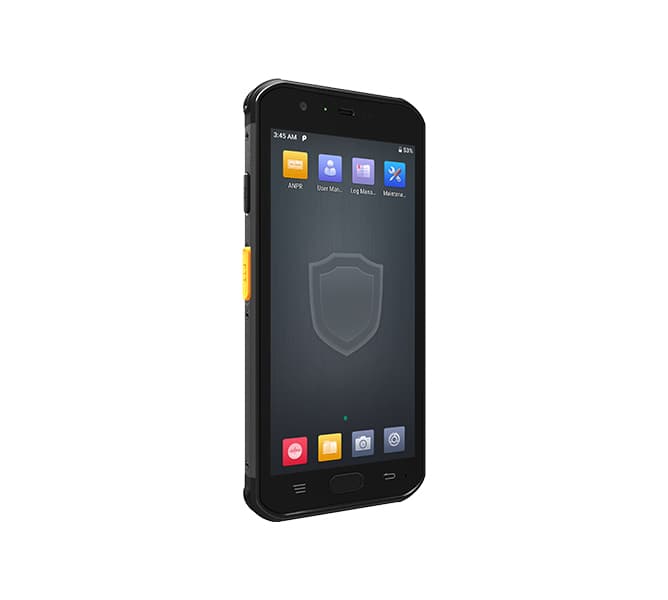

Mobile Portable Terminal

Stock Code: MPT320

Request Quote
Features
Technical

> Android 9.0
> 8-core 1.8 GHz
> 4 GB RAM + 64 GB ROM
> Main camera: 16MP; Front camera: 8MP
> H.265 and H.264 video compression
> Supports TF card up to 256 GB
> Fingerprint recognition
> 2G/3G/4G, Wi-Fi, Bluetooth, NFC, GPS/GLONASS/BeiDou Positioning
> 2W speaker
> 4600mAh battery, 4.35V
> IP68, withstands 1.5 m drop test
> -20°C to +55°C (-4°F to +131°F )

System
Operating System Android 9.0
Main Processor 8-core 1.8 GHz
Storage
Internal Memory 4 GB RAM + 64 GB ROM
TF Card Supports one TF card extension (up to 256 GB)
Camera
Pixel Main camera: 16MP
Front camera: 8MP
Image Sensor Main camera: 1/2.8″
Front camera: 1/4″
Max. Aperture Main camera: F1.6
Front camera: F1.8
Focal Length Main camera: 3.93 mm
Front camera: 2.61 mm
Focus Control Main camera: Auto/manual
Field of View Main camera: H: 67°; D: 78°
Front camera: H: 70°; D: 85°
HDR Supported by main camera
PDAF Supported by main camera
LED Flashing Light 1
LCD
Screen Size 5.7″ (TFT; FHD+)
Resolution 2160 × 1080
Brightness 400cd/m²
Contrast 1400:1
Touchscreen Type Highly sensitive 5-point capacitive touch; operable
with gloves or water on the screen
Others
Speaker 1 speaker: 2W
Button Volume +, volume –, power, Fn2, Fn1, PTT, SOS
lndicator Light Tri-color light used as status and charging indicator
Sensor Photosensitive/proximity/compass/gyroscope/Gsensor/temperature
Video/Audio
Video Resolution/Frame Rate Main camera: 720P@30 fps, 720P@60 fps, 1080P@30 fps
Front camera: 720P@30 fps, 1080P@30 fps
Video Compression H.264, H.265
Video Format DAV, MP4
Picture Format JPEG
Audio Compression AAC, G.711A
Audio Aampling Rate 8 KHz, 16 Bit
Audio Format DAV, AAC
Wireless
Wi-Fi IEEE802.11b/g/n/ac
Frequency: 2.4 GHz; 5 GHz
Cellular Network GSM: B2/B3/B5/B8
CDMA: BC0
WCDMA: B1/B2/B4/B5/B8
TD-SCDMA: B34/B39
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28
TDD-LTE: B34/B38/B39/B40/B41
Bluetooth BT5.0
NFC 13.56 MHz; Type A/B protocol
Positioning
Positioning GPS/BeiDou/GLONASS
Hybrid positioning accuracy is within 5 meters
Battery
Battery Capacity 4600mAh (replaceable)
Charging DC 5V 2A
Charging Time < 4h
Recording Time > 8 hours (1080P@30 fps)
Charging Port Micro USB
Slot and Port
SIM Card Slot 2: Nano SIM card; Dual SIM Dual Standby
TF Card Slot 1
USB Port 1 Micro USB 2.0
Audio Output 1: 3.5 mm port (CITIA)
External Camera 1 customizable physical port: Type-C
Gold Finger on the Back Connects to charging and transmission base for charging and data communication
Weight and Size
Gross Weight 307 g (including battery 85 g)
Product Dimensions 16.8 cm × 7.9 cm × 1.7 cm (6.61″ × 3.11″ × 0.67″)
Packaging Dimensions 19.5 cm × 11.1 cm × 5.6 cm (7.68″ × 4.37″ × 2.20″)
Environment
Protection Grade IP68; withstands 1.5 meters drop test
Operating Temperature -20°C to +55°C (-4°F to +131°F )
Operating Humidity 5% to 96%
Accessory
Included Battery, Micro USB cable, 5V 2A power adapter
Optional External infrared camera, external helmet camera, charging and transmission base, battery, leather case
Certification
CE and FCC Support
