Dahua

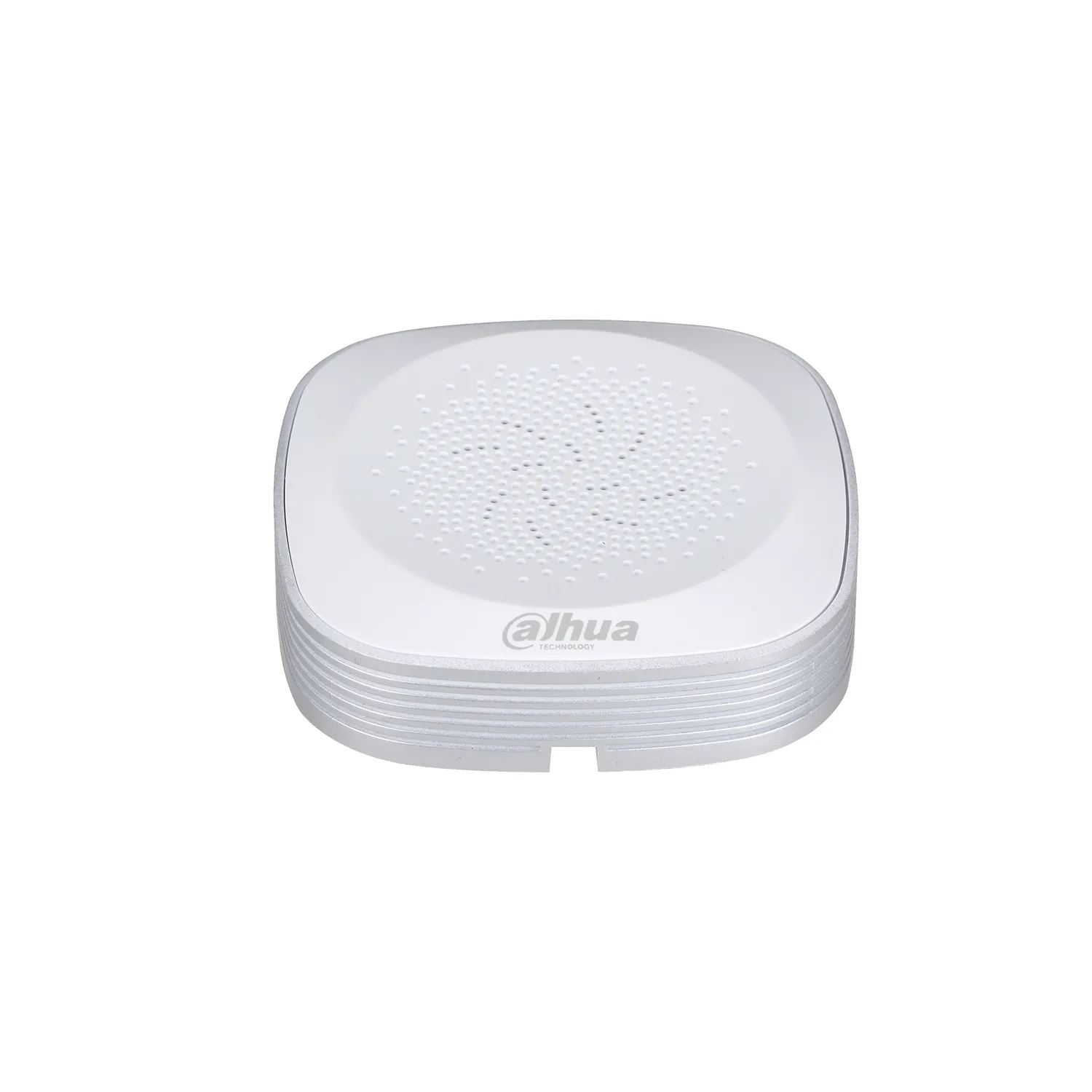

Hi-Fidelity Pickup

Stock Code: HAP201

Request Quote
Features
Technical

· Built-in CPU audio sampling module, low hardware-induced interference.
· Intelligent audio crack protection, automatic low microphone sensitivity adjustment.
· Adopts wide dynamic range processing technology for accurate audio capture.
· High-sensitivity microphone with omnidirectional sound pickup for clear and high-quality audio.
· Noise reduction through algorithm to enhance signal definition.
· Automatically gains and compensates for human voice frequency.
· Effectively reduces indoor echo caused by noise.
· Supports scream control function for improved audio stability.
· Built-in high-speed CPU for real-time audio signal processing with low latency.
· Integrated lightning protection and bipolar reverse power connection protection.
· CE and FCC compliant.

 Performance
Pickup Range 1 square meter–150 square meters (10.76 sq.ft–1614.59 sq.ft)
Audio Transmission Distance 3000 m (9842.52 ft)
Frequency Response 20 Hz–20 kHz
Sensitivity -38 dB
SNR 85 dB (1 m 40 dB audio source SPL) 52 dB(10 m 40 dB audio source SPL)1 kHz at 1 Pa
Pointing Features Omni-directional
Gain Adjustment 0 VPP–4.6 VPP adjustable (75 dB sound pressure 1 kHz)
Dynamic Range 106 dB (1 kHz at Max dB SPL)
Distortion ≤0.3% (74 dB sound pressure, A weighted)
Max. Sound Pressure 120 dB SPL (1 KHz,THD 1%)
Output Resistance 25 Ω non-balanced
Output Signal Amplitude 2.5 VPP/-25 dB
Microphone High-fidelity micro electromechanical system (MEMS) silicon microphone
Signal Processing Digital NR, reverberation, human voice enhancement, screaming control
 Protection
Protection 8kV Air,6kV contact ESD lightening protection, power polarity misconnection protection
 Electrical
Drive Capability Built-in preamplifier circuit
Connection Mode 3 lead wire: (power, audio, public GRD)
Transmission Cable 3-Pin mm² RVVP shielded cable
Power Supply 12V DC (9V-18V)
Power Consumption 0.72W (60mA)
 Environmental
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Operating Humidity ≤95%RH
Storage Temperature 0°C to +40°C (+32°F to +104°F)
Storage Humidity ≤95%RH
 Construction
Color White+grey
Casing PC+ABS
Dimensions 79.6 mm × 79.6 mm × 21.5 mm
(3.13″ × 3.13″ × 0.85″)
Net Weight 0.06 kg (0.13 lb)
Gross Weight 0.11 kg (0.24 lb)
 Certifications
Certifications FCC: 47 CFR Part 15,Subpart B:2016
CE: EN 55032:2015(Class B),EN50130-4:2011+A1:2014,EN55024:2010+A1:2015
