| System |
| Main Processor |
64-bit high-performance multi-core processor |
| Operating System |
Embedded Linux OS |
| Operating Interface |
Web (PCAPP) |
| Controller |
Dual controllers |
| Cache |
16 GB by default (extendable to 64 GB)/controller |
| Al Applications |
| AI by Camera |
Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) |
| Camera Compatibility |
| Thermal |
Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling |
| People Counting |
Works with camera for tripwire people counting, regional people counting and queue people counting |
| Bullet-PTZ Smart Track |
Works with camera for manual tracking, auto tracking, click positioning and select positioning |
| Fisheye Dewarp |
Supports dewarping for fisheye cameras |
| Audio and Video |
| Third-party Camera Access |
Onvif, Onvifs, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung, Hikvision |
| Compression Standard |
| Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression |
G.711A; G.711U; PCM; G726 |
| Network |
| Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; iSCSI; FTP ; SMB ; NFS |
| Mobile Phone Access |
DMSS |
| Interoperability |
ONVIF (Profile S); CGI; SDK |
| Browser |
Chrome; PCAPP; IE9 or higher; Firefox |
| Network Mode |
NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggregation, etc |
| Recording Playback |
| Multi-channel Playback |
Web palyback, max. 16-channel playback |
| Record Mode |
Auto record; manual record; search video detection; IO alarm; thermal imaging; intelligent event; all record file |
| Storage |
Internal HDD and network disk |
| Backup |
HDD, peripheral USB storage device |
| Playback Function |
1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame
2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off |
| Storage |
| Video Direct Storage (Private Protocol) |
Incoming: 512-channel (bandwidth: 1024 Mbps)
Recording: 512-channel (bandwidth: 1024 Mbps)
Outgoing: 512-channel (bandwidth: 1024 Mbps)
Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Onvif) |
Incoming: 512-channel (bandwidth: 1024 Mbps)
Recording: 512-channel (bandwidth: 1024 Mbps)
Outgoing: 512-channel (bandwidth: 1024 Mbps)
Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Auto Register) |
Incoming: 512-channel (bandwidth: 1024 Mbps)
Recording: 512-channel (bandwidth: 1024 Mbps)
Outgoing: 512-channel (bandwidth: 1024 Mbps)
Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (International Protocol) |
Incoming: 512-channel (bandwidth: 1024 Mbps)
Recording: 512-channel (bandwidth: 1024 Mbps)
Outgoing: 512-channel (bandwidth: 1024 Mbps)
Playback: 32-channel (bandwidth: 64 Mbps) |
| Picture Direct Storage |
Incoming: 250-channel (550 KB/picture)
Recording: 250-channel (550 KB/picture)
Outgoing: 250-channel (550 KB/picture) |
| Disk Group |
Yes |
| iSCSI |
Supports client and Server |
| Network Disk |
Supports client |
| RAID |
RAID 0/1/5/6/10/50/60;
(with enterprise-grade HDD) |
| Record Management |
Supports record control (continuous, event-based, scheduled, scheduled & event-based). |
| Storage Pool |
Yes |
| IPSAN |
| IPSAN Performance |
360-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) |
| Alarm |
| General Alarm |
Motion detect; tampering; IPC external alarm |
| Anomaly Alarm |
IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service |
| Alarm Linkage |
Record; snapshot (full image); alarm uploading; remote device alarm output;
camera audio; buzzer; log; preset; email, smart tracking and warning light.
Disarming alarm linkage action by period or one-click
sync disarm config with channels |

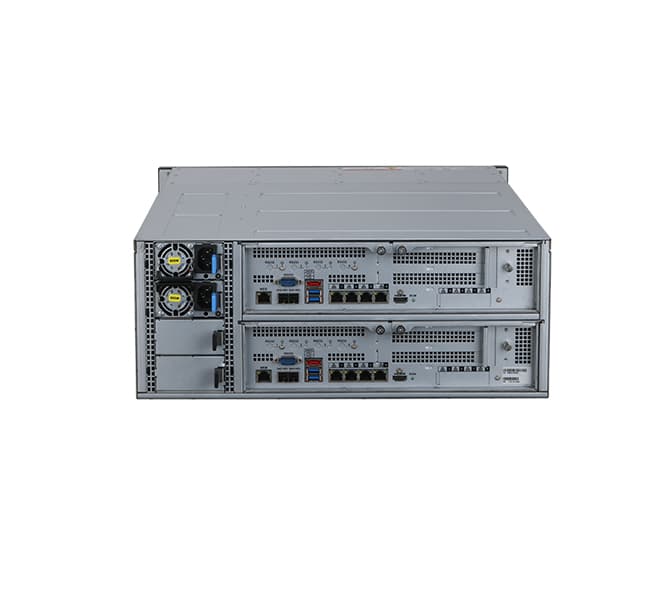

| Port |
| HDD Interface |
24 slots,
SAS
Max.18 T/HDD
hot swapping
CMR
support enterprise-grade HDD |
| eSATA |
1 × eSATA/controller |
| SAS |
2 × SAS (up to 12 Gbps)/controller |
| RS-232 |
1 × DB9 /controller |
| USB |
2 × USB3.0 and 2 × USB2.0/controller |
| HDMI |
1 x HDMI/controller, only for debug |
| Network Port |
1 x 1-GbE management port/controller; 4 × 1-GbE LAN ports/controller |
| Power |
1+1 redundant power |
| Network Port Extension |
4 × 1-GbE LAN ports/controller (optional)
2×10-GbE optical fiber ports/controller (optional) |
| General |
| Power Supply |
100–127 VAC/200–240 VAC, 50/60 Hz, 5 A/2.5 A |
| Power Consumption |
<120 W (without HDD, idling)
<500 W (all HDDs connected) |
| Fan |
Intelligent speed regulation fan |
| Net Weight |
29 kg (63.93 lb) |
| Gross Weight |
44 kg (97.00 lb) |
| Product Dimensions |
Chassis: 446 mm × 175mm × 736.5 mm (17.56″ × 6.89″ × 29.00″) (W × L × H)
Max. size: 482.6 mm (with hanger) × 175 mm × 736.5 mm (19.00″ × 6.89″ × 29.00″) (W × L × H)
Height: 4U |
| Packaging Dimensions |
With packaging: 687 mm × 962 mm × 526 mm (27.00″ × 37.87″ × 20.70″) (W × L × H) |
| Operating Temperature |
0 °C to 45 °C (+32 °F to +113 °F) |
| Operating Humidity |
10%–80% (RH), non-condensing |
| Operating Altitude |
≤5000 m (16404.20 ft) |
| Installation |
Standard 19 inch rack |
| Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B |
